The integrated sanitation station with professional quality visual displays is an ideal way to combine digital signage with a healthy, clean workplace, event location, or retail experience, in order to prepare for the new post-lockdown world.
The device is mains operated, versatile, and can be used as a wall-mounted unit, or mounted on a stylish illuminated stand, for easy portability. It uses a no-touch sanitation dispenser that can be filled with a variety of different hand sanitiser products. With built-in WIFI and LAN connectivity, you can project images/video and get your message across whilst helping to protect your clients.
Now Only £695*
Includes:
- Free Content Management System (Worth £345)
- Free Network Upgrade
- Free Carriage
Hand Sanitising Digital Signage
In areas where hygiene is key, and hand washing facilities are not available, these
displays are ideal. They combine a hand sanitising station* with a versatile Digital
Signage solution

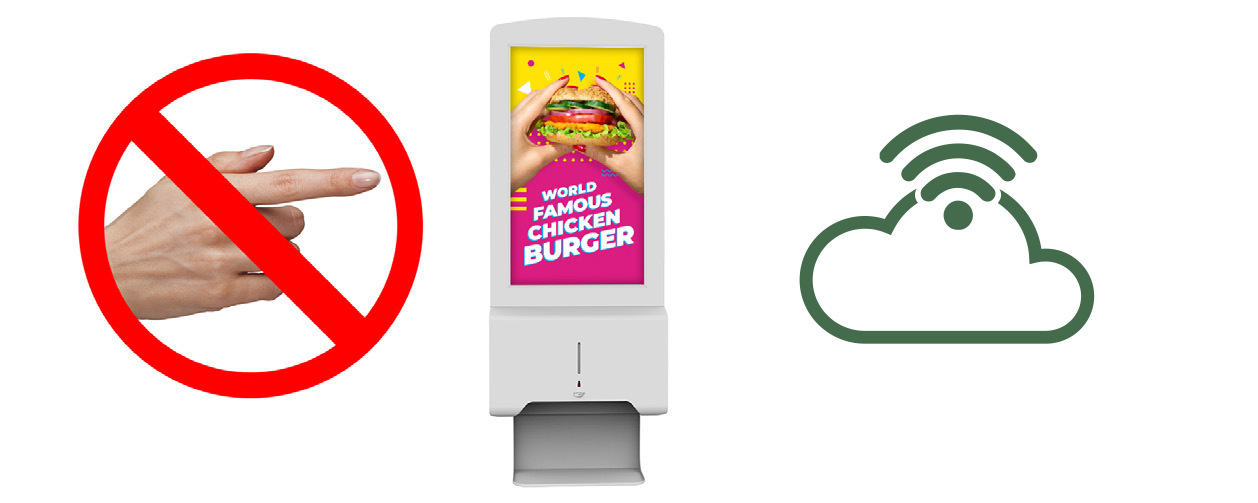

Contactless Usage & Free Network Upgrade
These displays come with a free network upgrade and free subscription as standard so
can be updated from our online CMS portal. They feature no external buttons or controls
and have an automated on/off power timer to minimise contact following installation.
[icons_shortcode post_id=”24367″]
Other Features
3 Year Warranty
We offer a full commercial 3 year manufacturer’s warranty and
free lifetime technical support, giving you complete piece of mind.
24/7 Usage
This is a true commercial grade solution. Built using a
commercial grade LCD panel and components it is designed to
be in constant use.

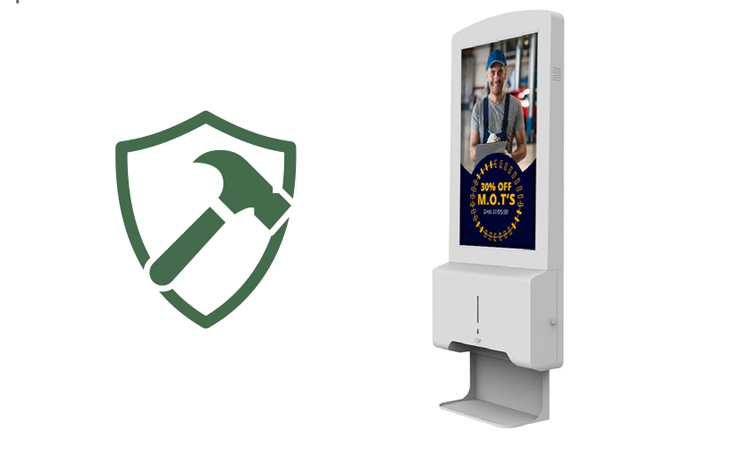

Robust Steel Enclosure
This solution features a full metal enclosure making it perfect
for any commercial or public environment, especially in locations
where impact is a concern.
Optional Stand Available
The display can be wall mounted as standard or mounted onto
a stylish floor stand, for easy portability. The modern stand also
features an illuminated blue LED strip

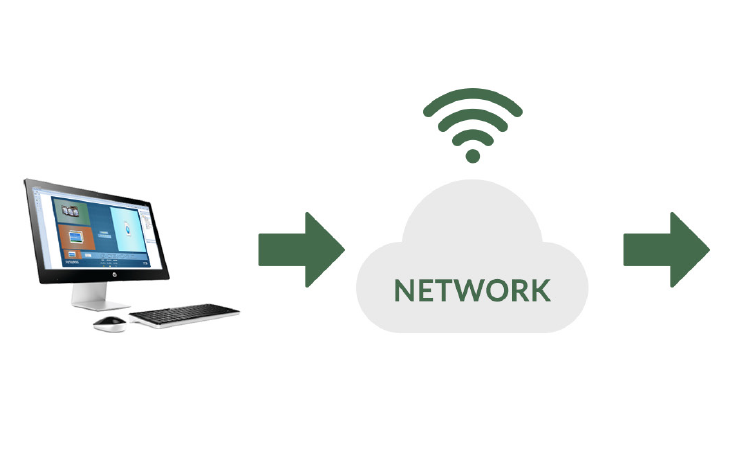

Free Online Content Management System (Worth £345)
Using our user-friendly, free software solution you can
combine multiple media zones (images, videos, webpages etc.),
social media feeds, scrolling text and RSS feeds for latest news.
Plug and Play
If your internet connection goes down these displays can also be
updated by copying your images and videos onto a USB stick and
inserting into the display. Your images and videos will then play in
a continuous loop.

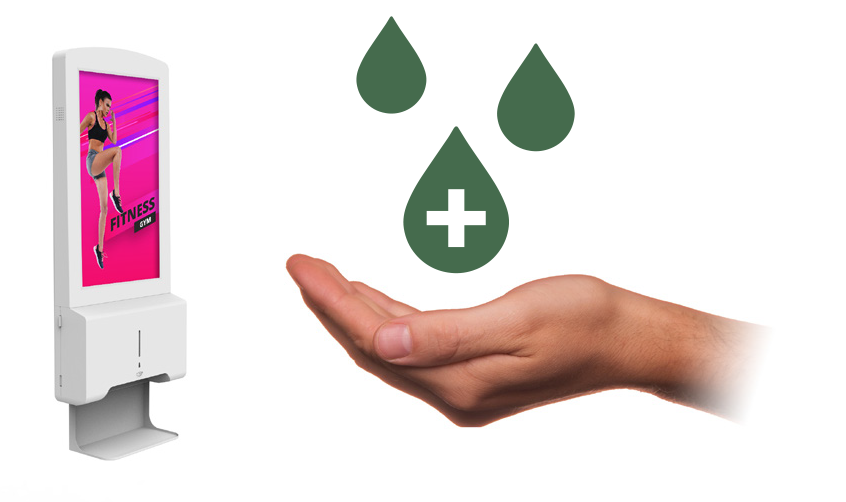

Fully Automated Dispensing
The fully automated design removes the need to touch the
dispenser, simply place your hand under the dispenser and a
measured dose sanitiser will be dispensed. The dispense valve is
non-spray, non-clog and non-drip.
Custom Modifications
We can upgrade your display to have 4G connectivity,
manufacture a touch screen version or even supply the display in
different colours.
Key Features
Now Only £695*
Includes:
- Free Content Management System (Worth £345)
- Free Network Upgrade
- Free Carriage
Specification Table
| 22 Inch | ||
|---|---|---|
|
Panel |
Resolution |
1080×1920 |
|
Display Area (mm) |
266.95×475.38 |
|
| Aspect Ratio | 16:9 | |
| Viewing Angle | 178° | |
| Colour | 16.7M | |
| Contrast Ratio | 5000:1 | |
| Brightness | 450cd/m2 | |
| Response time | 5ms | |
| Lifespan (hours) | 70,000 | |
| Audio | Built-in stereo speakers | 3W x2 |
| AV Inputs | Video | HDMI, VGA |
| Audio | Audio Socket (3.5mm) | |
| Power | Power Consumption (W) | 17 |
| Power Input | AC110~240V (50Hz~60Hz) | |
| Mechanical | Unit Size (WxHxD mm) | 350x800x101.2 |
| Package Size (WxHxD mm) | TBD | |
| VESA Holes (mm) | 200×200 | |
| Net Weight (kg) | 7 | |
| Gross Weight (kg) | TBD | |
| Environmental | Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -30°C to 60°C | |
| Operating Humidity | 10% to 80% | |
| Storage Humidity | 5% to 95% | |
| Computer | Media Formats | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG) |
| Media Resolution | 1920×1080/1080×1920 | |
| Internal Memory | 6GB | |
| Computer | CPU | Quad-Core Cortex-A17@1.61GHz |
| GPU | Mali-T760 MP4 @600MHz | |
| RAM | 2GB DDR3 | |
| ROM | 8GB NAND | |
| USB | USB2.0 HOST (x2) | |
| LAN | 10/100M Ethernet (Network Version Only | |
| Wi-Fi | 802.11b/g/n/ac (Network Version Only) | |
| OS | Android 5.1.1 | |
| Graphic Engine | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | |
| Dispenser | Capacity (ml) | 700 (each dose 0.8-1) |
| Sensing Distance (cm) 5 | 5 | |
| Solution Type | Liquid/Foam/Gel (non-spray) | |
| Accessories | Included | Drip Tray, Scheduling Software, Remote Control, Key, User Manual |
| Optional | Floor Stand, Network Version, Touch Screen Version, 4G Upgrade | |
| Standards | Certification | CE, FCC & ROHS |
| Warranty | Warranty Period | 3 Year Warranty |
| Technical Support | Lifetime |
Errors and omissions excepted
*Hand sanitising liquid, foam or gel not included

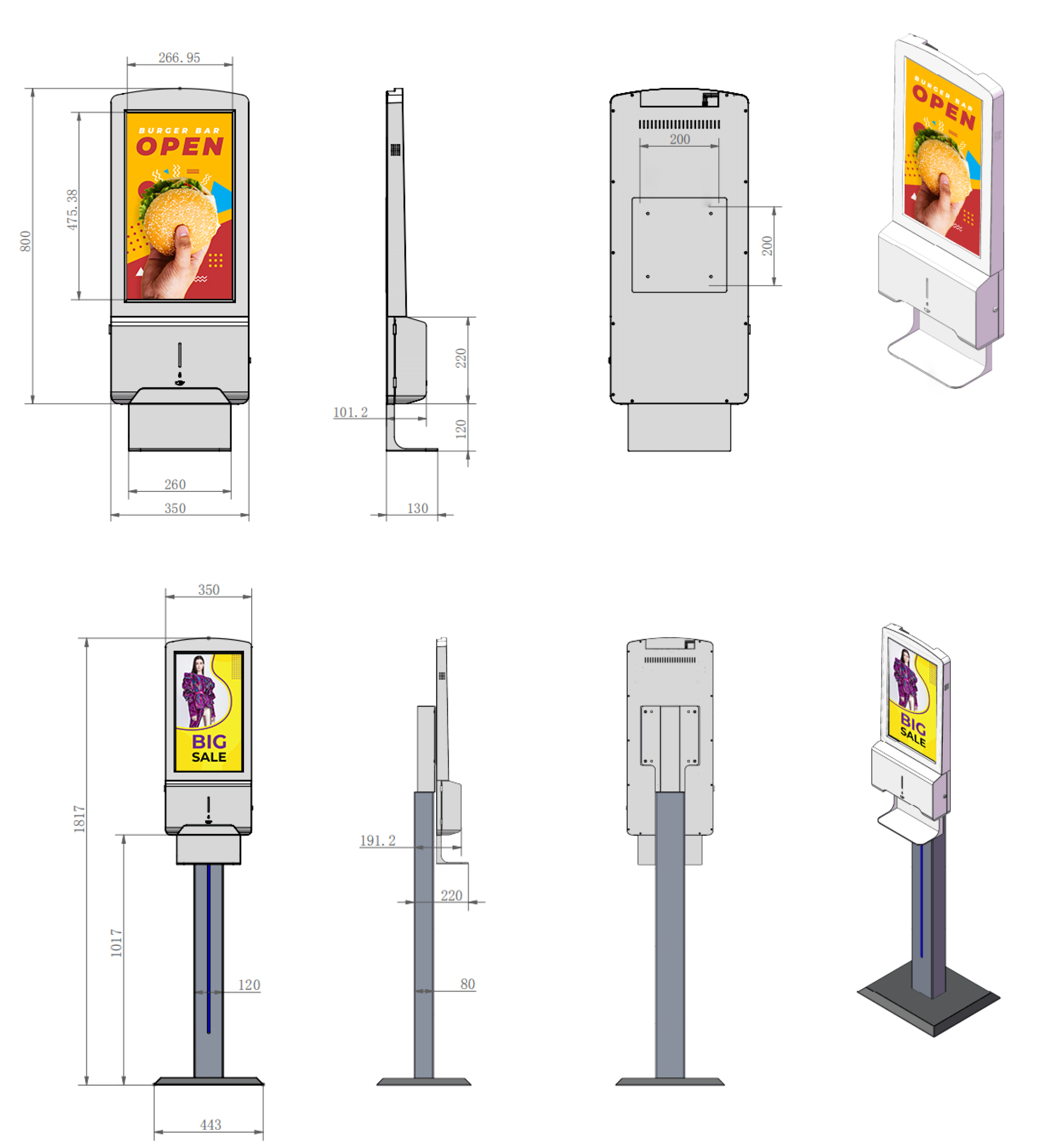

Technical Drawing
